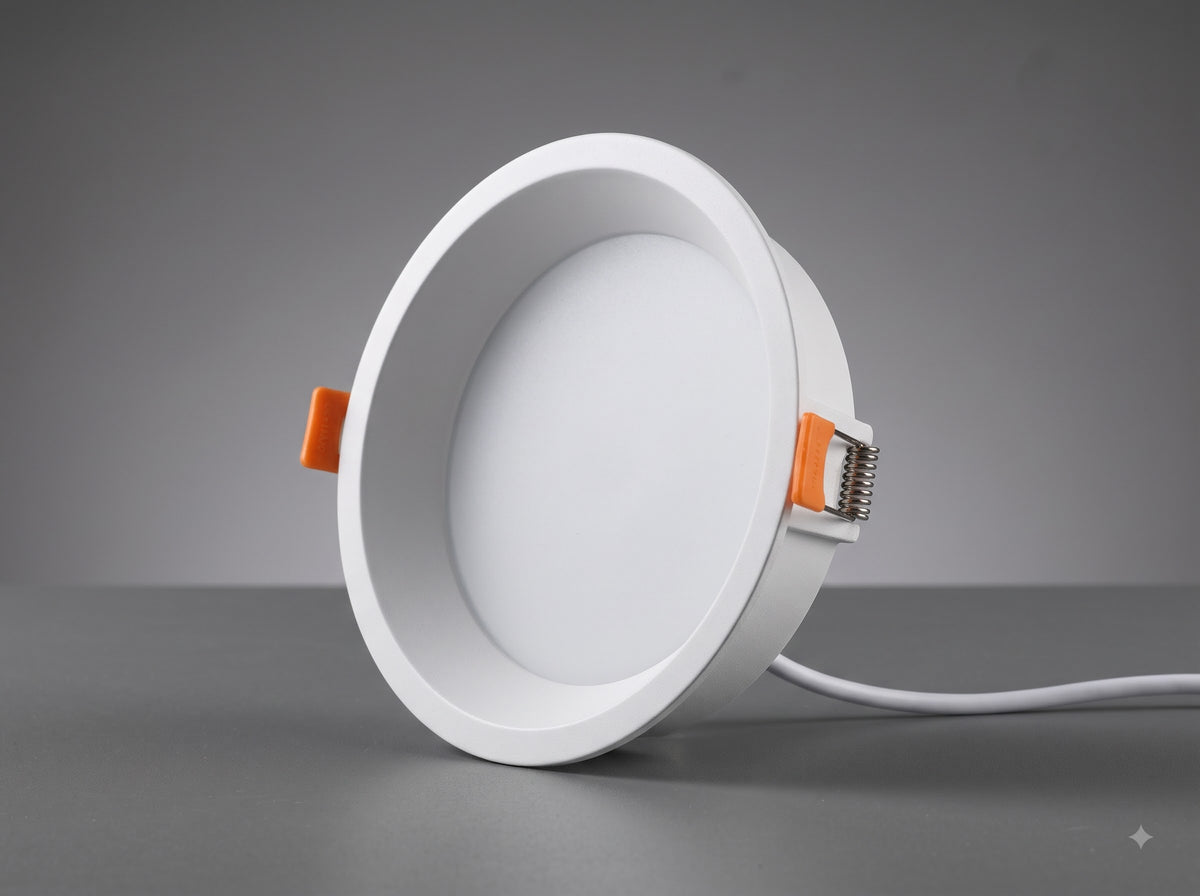

The 402 Deep Down Panel is a round recessed panel with a deeper housing for a more diffused glow, finished with a built-in 3-in-1 switchable colour temperature.
- 12–30W
- 3-in-1 colour changing
- Quality-checked by Diamond, since 1958
- See it switched on at our Kolkata showrooms
- Secure checkout
Project or bulk order? Get trade pricing
About the 402 Deep Down Panel
Overview
The 402 Deep Down Panel is a round recessed panel with a deeper housing for a more diffused glow, finished with a built-in 3-in-1 switchable colour temperature.
Variants & Specifications
Choose from 12W (3\" cut-out), 18W (4\" cut-out), 24W (5\" cut-out) and 30W (6\" cut-out), each with the 3-in-1 switchable CCT.
Ideal Applications
Suited for living rooms, offices and shops across Kolkata and West Bengal that want a deeper panel glow with switchable colour temperature.
Specifications
| Model Name | 402 |
|---|---|
| Wattage | 12W, 18W, 24W, 30W |
| Cut-out Size | 12W: 3\" mm, 18W: 4\" mm, 24W: 5\" mm, 30W: 6\" mm |
| Shape | Round |
| Light colour | 3-in-1 Switchable (Cool White, Warm White (2700K), Natural White) |
| Price | 12w: ₹1000, 18w: ₹1400, 24w: ₹1900, 30w: ₹2200 |
Need a spec sheet, IES file or help choosing? Ask us on WhatsApp
You may also like
402 Deep Down LED Panel
A regular recessed panel sits flush and throws a flat wash of light. The 402 Deep Down LED panel sits a little deeper in the ceiling, and that extra depth softens the glow so the light spreads more evenly across the room instead of showing a hard bright ring.
It comes in four wattages, from a compact 12W up to a strong 30W, and every version carries a 3-in-1 switchable colour temperature, so you decide between warm, cool or natural white after the fixture is already in the ceiling. It is a practical deep down LED panel for homes and shops across Kolkata that do not want to commit to one colour tone at the time of wiring.
Read moreRead less
Why Choose a Deep Down Panel
The deeper housing on the 402 panel diffuses the LED source more than a shallow panel, which means less visible hotspot directly under the fixture. For rooms where the ceiling light needs to look soft rather than clinical, this is the main reason to pick a deep down build over a flat panel.
Picking the Right Wattage
The 402 panel scales with cutout size: the 12W uses a 3" cutout, 18W a 4" cutout, 24W a 5" cutout, and the 30W needs a 6" cutout. Smaller rooms like bedrooms and passages usually work well with the 12W or 18W, while larger living rooms, shop floors and showrooms benefit from the 24W or 30W for even coverage.
Installation and Cutout Notes
Confirm your false ceiling cutout size against the wattage you are ordering before the electrician cuts the opening — the 402 panel is round and the cutout sizes are fixed per wattage, not adjustable. Because it is a 3-in-1 switchable fixture, there is a small selector on the fitting itself to set the colour temperature after installation.
Where the 402 Panel Works Best
This panel suits living rooms, bedrooms, home offices and retail interiors where a soft, even ceiling glow is preferred over a sharp downlight look. It also works well in shops across Kolkata that want to switch between warm displays in the evening and cooler, brighter light during the day.
Buy the 402 Deep Down Panel in Kolkata
The current price, including any running offer, is shown on this product page. Order online from Diamond Electrical Industries. Compare it with our other LED panel lights, or see it switched on at our Esplanade East showroom in Kolkata.
Frequently Asked Questions
What is the price of the 402 Deep Down Panel?
The price depends on the option you choose. The current price for each option, including any running offer, is shown on this product page. It is a value deep down LED panel option for Kolkata homes and shops.
Which wattage should I choose for my room?
Smaller rooms like bedrooms and passages usually suit the 12W or 18W, while larger living rooms and shop floors do better with the 24W or 30W for even coverage. Match the wattage to your ceiling cutout size before ordering.
What cutout size does the 402 panel need?
Cutout size is fixed per wattage: 3" for 12W, 4" for 18W, 5" for 24W and 6" for 30W. Confirm the size with your electrician before the ceiling opening is cut.
What does 3-in-1 mean on this panel?
Every 402 panel switches between warm white, cool white and natural white from one fixture, so you pick the colour tone after installation rather than at the time of ordering.
Where does the 402 Deep Down Panel work best?
It suits living rooms, bedrooms, home offices and retail spaces that want a soft, even glow rather than a sharp downlight look, thanks to its deeper recessed housing.
Is this panel round or square?
The 402 Deep Down Panel is round across all four wattages.
